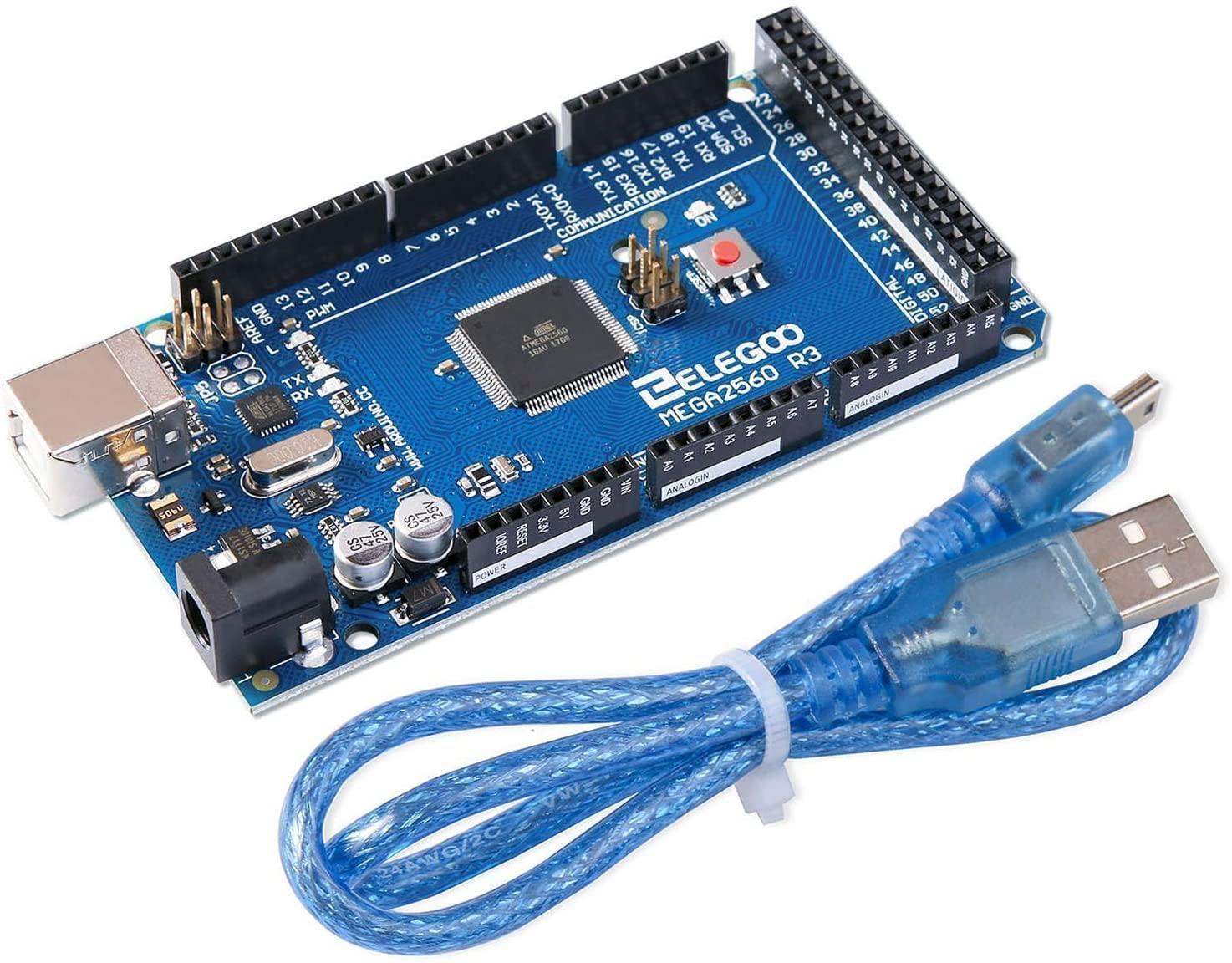

MEGA 2560 R3 Board with USB Cable
- The Mega is 100% compatible with Arduino IDE and most of the shields are designed for the Arduino mega2560 R3，RoHS Compliant
- The chip is Atmega2560-16au and Atmega16u2, same with the official version.
- Improved and expert version: 1. 0 pinout: added SDA and SCL pins that are near to the AREF pin
- Stronger RESET circuit. Use 5. 5 * 2. 1mm DC barrel jack (compatible with 5. 5 * 2. 5mm DC barrel jack)

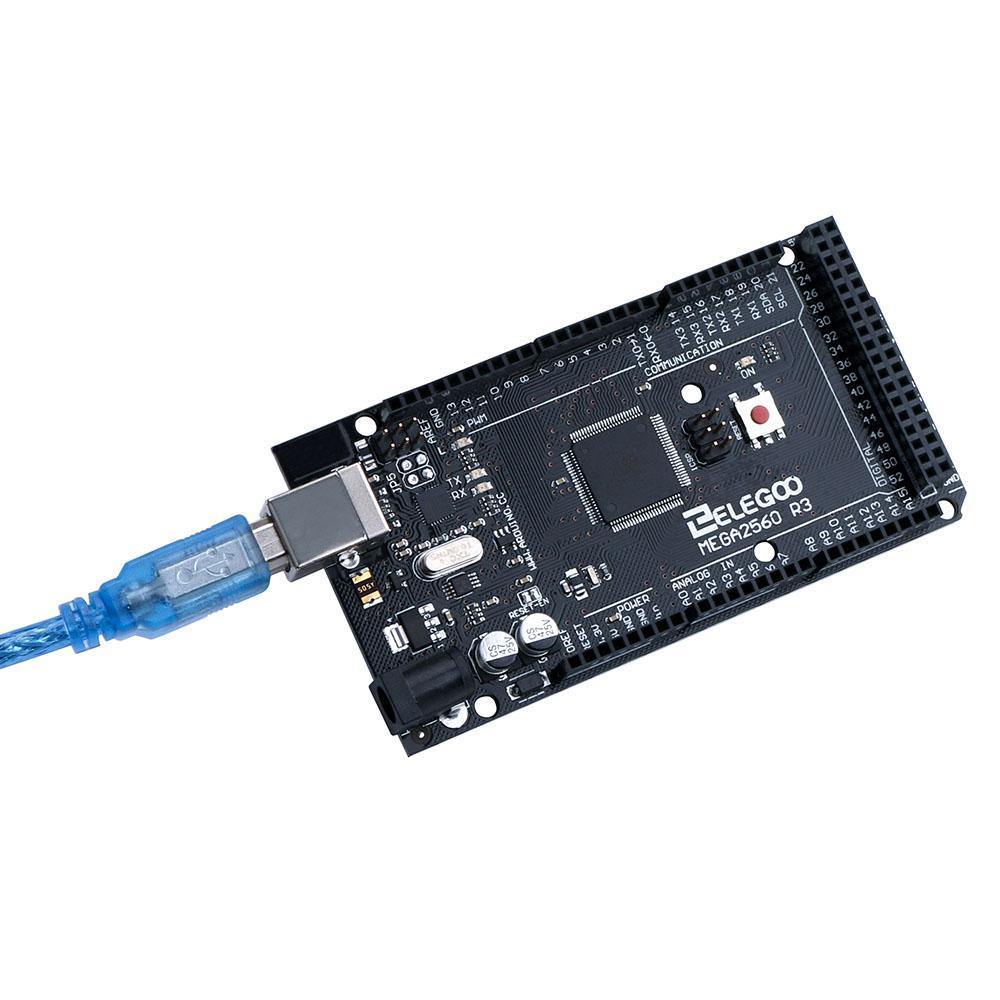

- It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.
Product Details
|
|
|
|
|---|---|---|

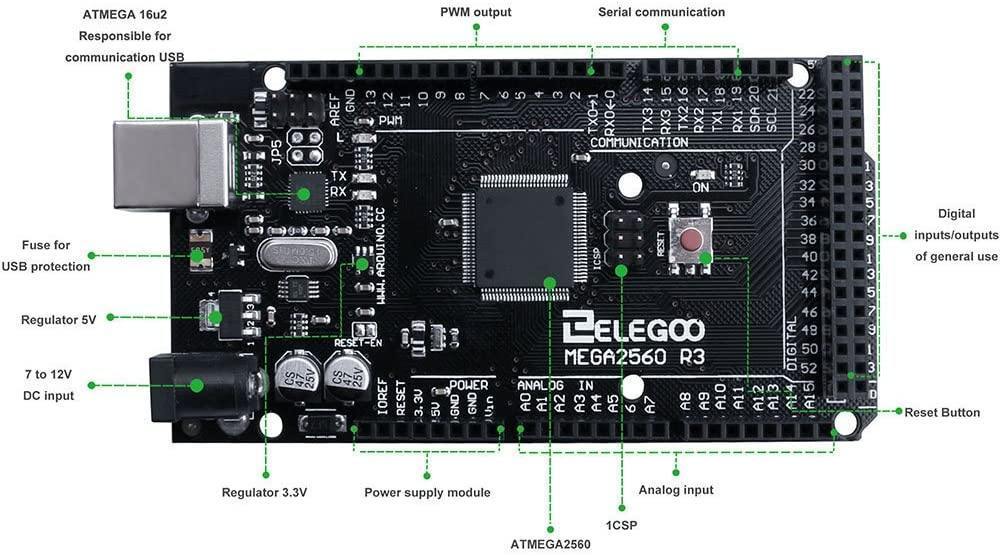

Extra Points:Besides the 54 digital I/O pins and 16 analog inputs, it also has 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It provides everything needed to support the micro-controller. You will simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. |
Simplification and Security:The ATmega2560 on the Elegoo Mega 2560 comes preprogrammed with a bootloader that allows you to upload new code to it without the use of an external hardware programmer. The Mega 2560 has a re-settable fuse that protects your computer's USB ports from shorts and over-current. Although most computers provide their own internal protection, the fuse provides an extra layer of protection. If more than 500 MA is applied to the USB port, the fuse will automatically break the connection until the short or overload is removed. |
Memory Store:The ATmega2560 of Elegoo Mega 2560 R3 Controller Board has 256 KB of flash memory for storing code (of which 8 KB is used for the bootloader), 8 KB of Spram and 4 KB of EEPROM (which can be read and written with the Eeprom library). |
Diverse Power Methods:
The Elegoo Mega 2560 R3 can be powered via the USB connection or with an external power supply. The power source is selected automatically. External (non-USB) power can come either from an AC-to-DC adapter (wall-wart) or battery. The adapter can be connected by plugging a 2.1mm center-positive plug into the board's power jack. Leads from a battery can be inserted in the GND and Vin pin headers of the POWER connector.
Technical Specification:
Microcontroller: ATmega2560
Controller chip: Atmega2560-16au and Atmega16u2
Operating Voltage: 5V ; Input: Voltage (recommended):7-9V
Digital I/O Pins: 54 (of which 15 provide PWM output)
Analog Input Pins: 16 DC
Current per I/O Pin: 40 mA ; DC Current for 3.3V Pin: 50 mA
Flash Memory: 256 KB of which 8 KB used by bootloader
SRAM: 8 KB EEPROM: 4 KB Clock Speed: 16 MHz LED_BUILTIN: 13
Length: 101.5 mm Width: 53.3 mm Weight: 34 g
